Applications
Main Applications
Police & Riot Control
- Less-leathal weapon：max 410fps, 45ft*lbf (125m/s，61J)
- Power Adjustable: muzzle velocity from near zero to max.
- Record time and location of each launch.
- Constant terminal energy
Security
Training
Hunting
Specs. and Features
Projectile:Φ9mm steel tip, mass ~120gr
Max Muzzle Velocity:410 fps
Max Kinetic Energy:45 ft*lbf
Rate of Fire:180 rpm (at full power)

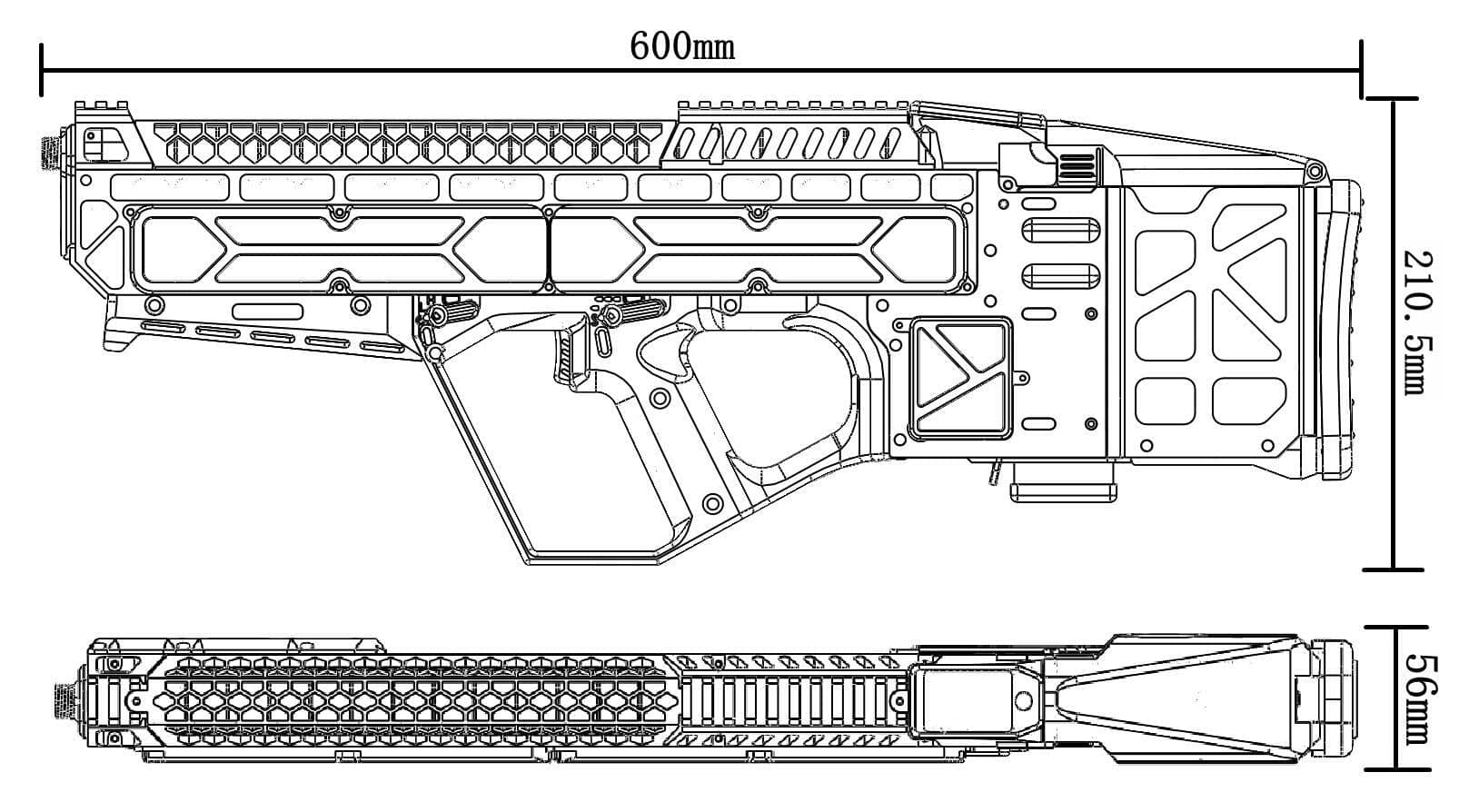

Total Weight:7.7lbs (with one full magazine)
Stealth:No sound (almost), No muzzle flash, No smoke, No residue
Adjustability:Adjustable Power, Adjustable Rate of Fire
Power Module:Swappable power module (battery), charge with USB Type-C.
Range and Accuracy
Effective range around 50m for standard paper target (50% displacement <20cm)

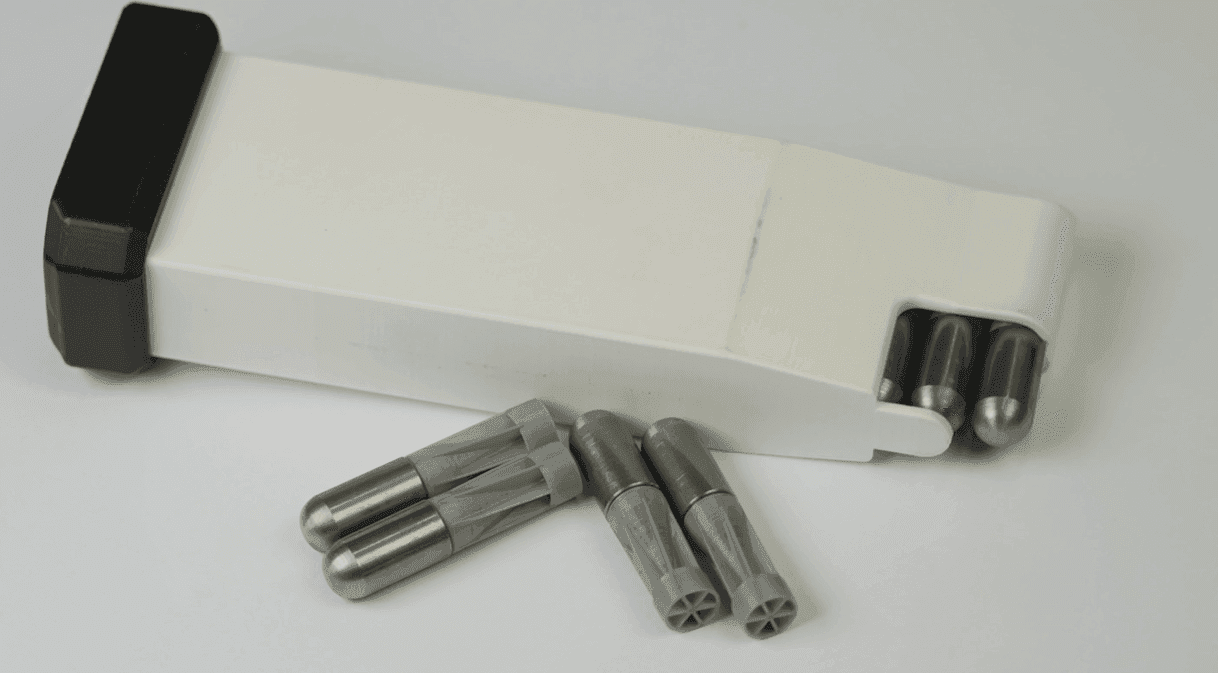

Projectile and Magazine
Pin-stabilized projectile with a round steel tip and a plastic fin. Weight: 7.8 g (steel tip 7 g, fin 0.8 g).
Continuous Auto Firing
Testing video during development shows full-power, full-auto firing at 180 rpm. Higher rate of fire can be achieved with reduced power (600 rpm at 15J / 11ft-lbf). Semi-auto mode is also supported.

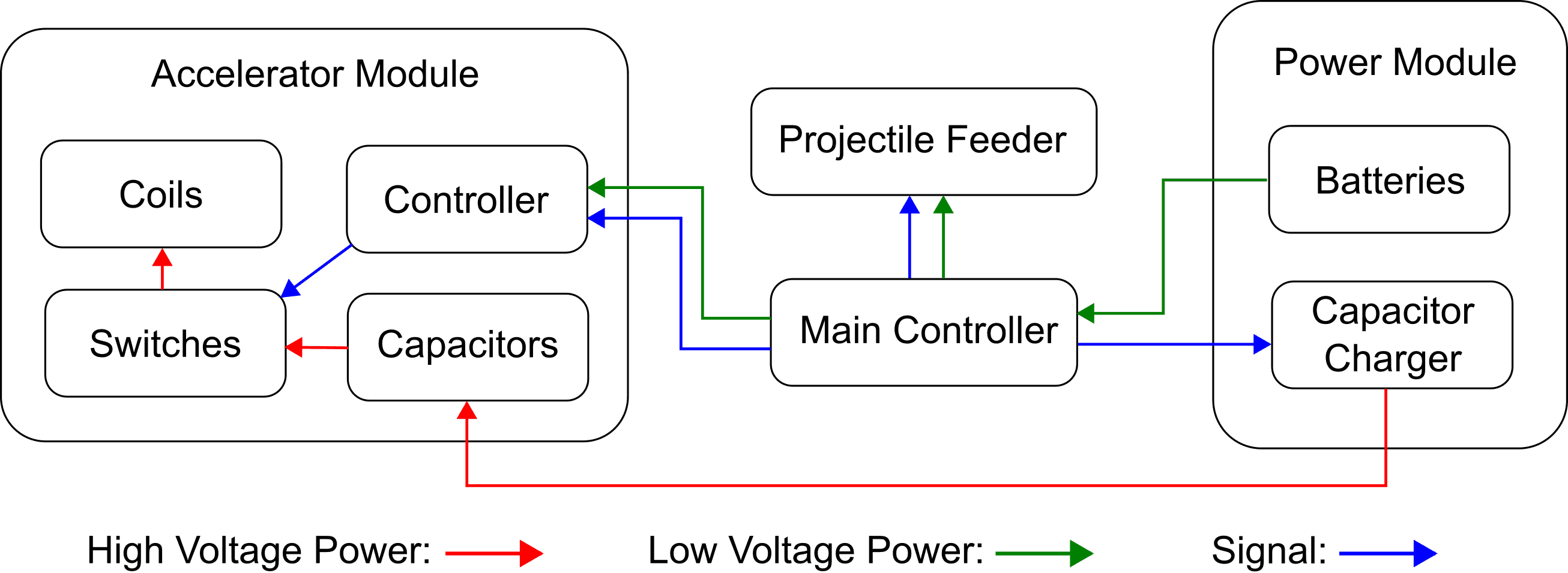

Circuit Architecture
Four main modules and their relationship

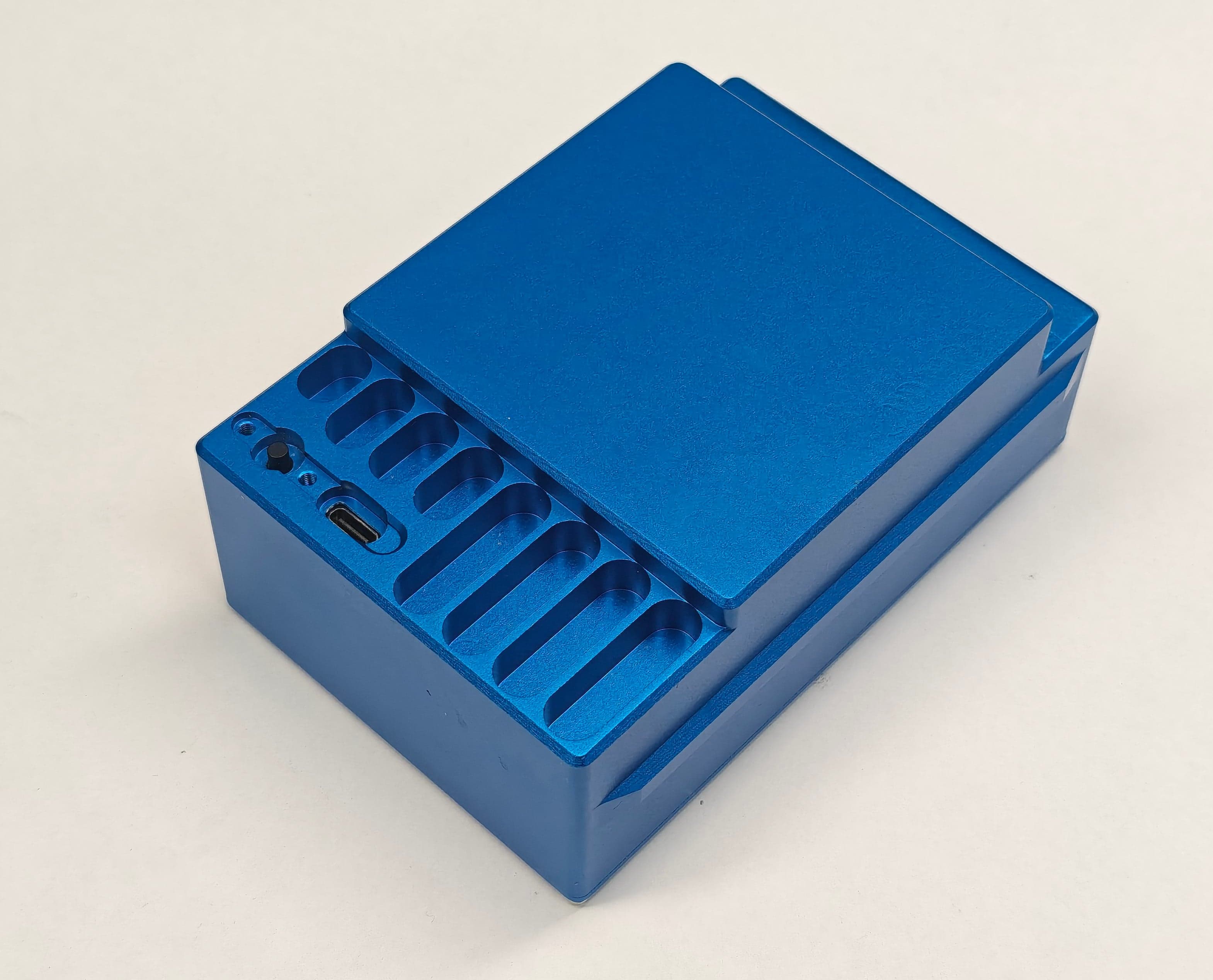

Power module (battery)
- Easily swappable and waterproof.
- Integrates batteries and a capacitor charger in an aluminum casing.
- The batteries provide ~60 Wh and are charged with a standard USB Type-C cellphone charger.
- The capacitor charger is a switch-mode power supply with constant-current / constant-voltage output and ~1.5 kW power.
